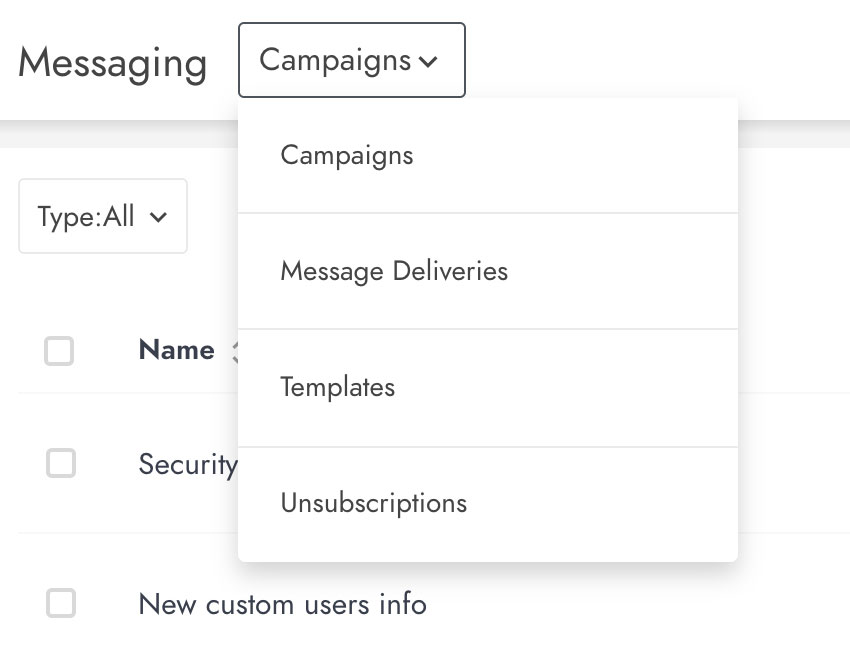

# Messaging

The Messaging functionality in Modyo allows you to create mass campaigns to send segmented and personalized information to end users.

In Modyo, you can send messages to users through two channels:

Emails: Send campaigns to the email addresses registered in user profiles. It is not necessary to be logged into the platform to view the messages.
Notifications: Send notifications through the internal messaging system. Users must log in to the platform to view them.

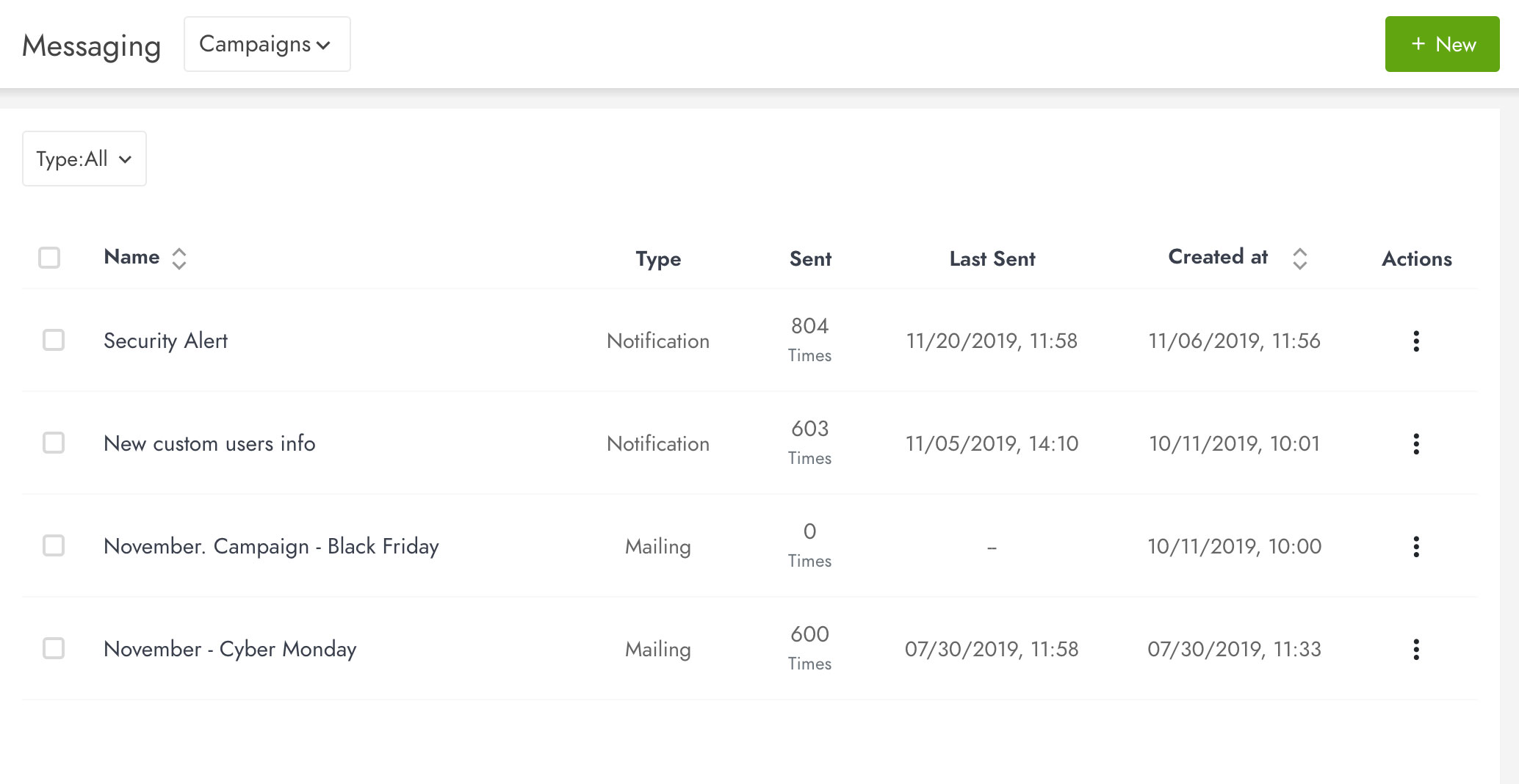

# Campaigns

In the Campaigns section, you can manage all messages sent to end users. Use the Type button to filter campaigns by the delivery channel.

Campaigns are organized into the following columns:

Name: The name assigned to the campaign. It may include the specific segment it was sent to.
Type: Type of message in which the campaign was sent.
Sent: Total number of messages sent.
Last sent: Date and time the campaign was sent.
Created on: Campaign creation date.

Each campaign row includes a menu with the following actions:

Edit campaign
Delete

Danger

If you delete a campaign, you will not be able to recover it, and its record will be deleted from the system.

Segment scope

If your access to the realm is restricted by segments, you can only target campaigns to segments within your scope. Campaigns targeting segments outside your scope are displayed in Read only mode: you can see their metadata, but not their metrics or recipients, and you cannot edit, send, duplicate, or delete them.

# Create a campaign

Campaigns allow you to contact your users directly via email or direct notifications, including support for WebPush notifications. To create a new campaign, click the New Campaign button.

# Mailing Campaigns

Email campaigns allow you to contact users via email. To set up an email campaign, fill in the fields requested in the form:

Name: The identifier for the campaign.
Type: Select Email to enable this option.
Subject: The text that will appear in the message's subject line. If this field is left blank, the realm's default email will be used.
Reply To: The email address for user responses.
Template: Select a template. If no template is selected, a blank one will be used.
Enable Segmentation: Select a specific segment or leave this option unchecked to send the message to all users.

Click Save and continue to open the WYSIWYG editor, where you can customize the selected template's content and use personalization variables. Once edited, select Save to confirm the changes and access the Send Status view.

# Notification Campaigns

Notification campaigns allow you to send direct messages to users. To set up a notification campaign, fill in the following fields in the form:

Name: The identifier for the campaign.
Type: Select Notification to activate this option.
Subject: The text that will appear in the sent message.

# Enable WebPush support

Notification campaigns have the ability to send WebPush notifications. This functionality allows users to receive messages directly in their browser. To enable this function, make sure you meet the following requirements:

The web application that sends the notifications must be linked to the Realm where the campaigns are created.
The web application must be in Enabled state.
In the PWA section of the web application, activate the options Enable top level service worker and Enable WebPush notifications.

In addition, for users to receive WebPush notifications, they must comply with the following:

Must be authenticated.
Notifications must be enabled in your browser.

Attention

If you are using a Modyo version older than 10.0, update your template with the WebPush support code (opens new window).

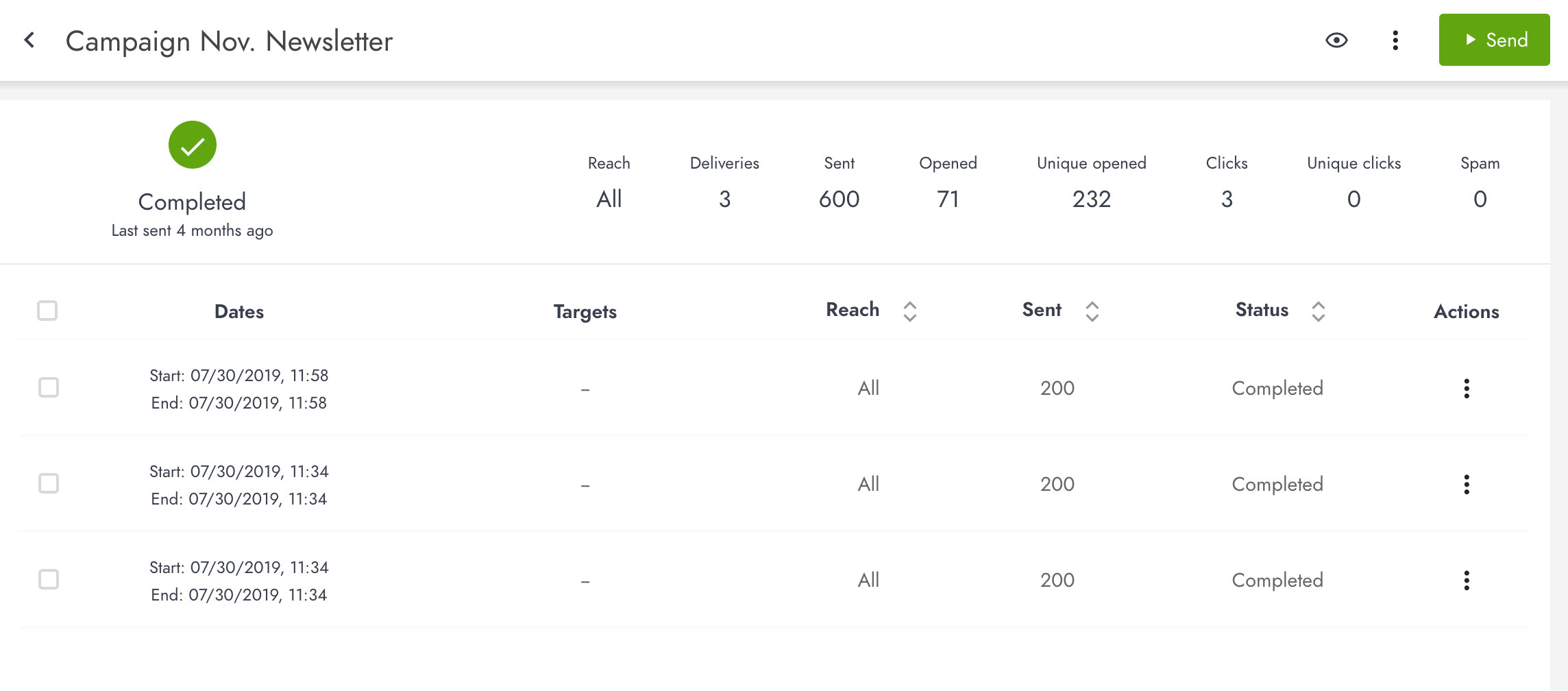

# Campaign Status

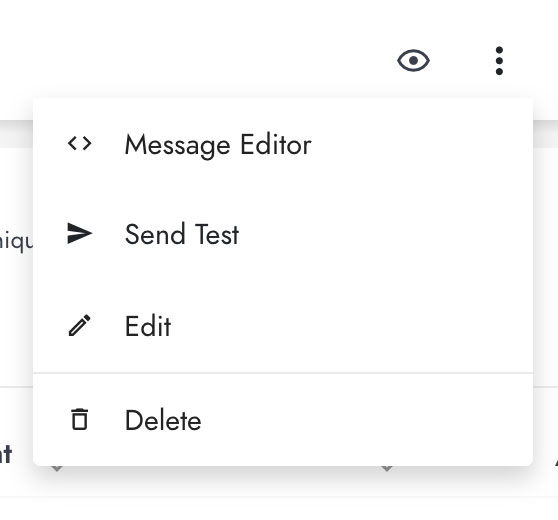

Before sending a campaign, use the Preview button to verify the content. Once confirmed, click Send. The contextual button allows you to perform these actions:

Message Editor: Modify the content before sending.
Send test: Sends a test message to a specific address (It can only be sent to users with access to the Modyo backend).
Edit: Change campaign properties, such as the target segment or reply address.
Clone Campaign: Create a copy with all the campaign's content.
Delete campaign: Deletes a campaign.

Once a campaign is Completed, you cannot send it again. If you want to send the same campaign again, select the clone option. This creates a new campaign with the same name data, segments, and content, while the statistical information starts from scratch.

You can cancel a campaign when it is in queue or while it is being sent.

Attention

A campaign can be sent again as long as it is not Completed: the Send button comes back both when the delivery was canceled and when it failed.

When you send it, the Do not send this campaign to people who have previously received it. checkbox leaves out anyone who already received a message from this campaign. If you leave it unchecked, the delivery goes through every user in scope again and the number of message deliveries may be greater than the total reach of users of the campaign.

# Campaign statuses

This view shows the campaign's current status next to its metrics. The possible statuses are:

Inactive: The campaign is created and has not been sent yet.
Pending: The delivery was already requested and is queued, but has not started processing.
Sending: The delivery is in progress and deliveries are generated in groups of users.
Completed: The delivery finished going through every recipient.
Canceled: Someone stopped the delivery while it was Pending or Sending. The deliveries generated up to that point are not reverted.
Failed: The delivery was interrupted by an error before finishing. The campaign keeps the deliveries it managed to generate.

The view's main button changes with the status: Inactive, Canceled, and Failed show Send; Pending and Sending show Cancel. Completed shows neither, and the Message Editor and Edit actions also disappear from the contextual menu: a completed campaign can no longer be modified or resent, only cloned.

# Delivery results

In campaigns sent by email, you can view:

Reach: People who received the campaign.
Sent: Total number of emails sent.
Opened: Total number of emails opened.
Unique opens: Total number of users who opened the campaign at least once.
Clicks: Number of times a link in the campaign has been clicked.
Unique Clicks: Number of users who have clicked on the campaign.
Spam: Number of users whose email reached the spam folder.

If you sent the campaign by notification, you can view:

Reach: People who received the campaign.
Sent: Number of notifications sent.
Opened: Number of notifications opened.

If you send a campaign through segments, you can see which group of users the campaign reached. If this section does not appear, it is because the campaign was sent to all contacts.

Attention

If you have not yet sent the campaign, the values for that campaign will appear as zero.

Danger

When deleting a campaign, you cannot recover the record if changes were made.

Deleting a campaign when it is in the process of being sent does not mean that it will not reach users, but that the process is stopped at the point where it currently is.

Clicking on the name of a campaign takes you to the Message Deliveries section.

# Message deliveries

In the Message Deliveries section, you will find the list of users who have received a message from the platform. Here, you can see a list of all users who have received a unique email or notification, referred to as “No Campaign”.

"No Campaign" refers to an email or notification sent specifically to a user on a certain date. These messages are not considered campaigns, as they are personalized and contain information not sent to other users.

These messages are not created from the admin, but from the management API:

POST /api/admin/customers/{realm_uid}/messaging/mailer sends an email to a realm user.
POST /api/admin/customers/{realm_uid}/messaging/notifications sends a notification to a realm user.

In both cases the recipient is identified by username, not by email, and must be within your segment scope: if it is not, the email call answers 409 and the notification call 404. The field-by-field detail of each call is in the service catalog, under the Mailer and Notifications resources; to open it, follow Call using the Swagger Portal.

The email is queued, so a successful response confirms that the call was accepted, not that the message was already delivered. Its body accepts %{name}, %{first_name}, %{last_name}, %{email}, and %{unsubscribe_link}, a subset of the campaign personalization variables: %{show_link} and %{show_url} are not available. If the body uses any other variable, the call answers 409 with the error Body content is not valid. It also answers 409 when from is not a valid email address, with the error Email '…' is not valid.

Notifications, on the other hand, do not accept variables, even though notification campaigns do: any %{…} in the body makes the call answer 409 with a null body, without error details, and the notification is not created.

Attention

There is also a legacy route, POST /api/admin/mailer, which reaches the same action but does not appear in the service catalog and does not carry the realm in the URL: you have to pass realm_uid as a parameter or the call answers 404. It is kept for compatibility; use the realm route in new integrations.

In the initial view, the messages are ordered in these categories:

Name: Name of the user to whom the message was sent. The user's email is included, regardless of whether it was sent by email or notification.
Campaign: Campaign under which the message was sent.
Type: The route through which the message was sent, either email or notification.
Delivery: Date on which the campaign started.
Sent: Date the message was sent.
Read: Alert if the user read or saw the message.

In addition, you can filter the data using the following filters:

Campaign Type: All, mail, or notification.
Campaign Name: Name given to the campaign in general.
Shipment: Date on which the campaign was sent.

The search bar allows you to search for a specific term.

# Templates

In the Templates section, you can create and manage email designs for your campaigns. To create an email message, you need a template where you can add your content.

# Create a template

Click New Template.
Give the template a descriptive name.
Use the WYSIWYG editor to customize the design.

# Edit Templates

Each template has an edit button with the following actions:

Preview: Shows the saved email template model.
Copy: Allows you to copy the template.
Delete: Deletes the template

Attention

When you create a campaign, remember to add in the footer all the legal information required by your country's regulation, regarding mass mailings.

To automate footer insertion, read Realm Configuration

# Personalization variables

The campaign message editor and the template editor accept variables that the platform replaces with each recipient's data at delivery time. Both editors list them under the label Allowed attributes (will be dynamically replaced with data).

The syntax is %{variable} and the list is closed: you cannot invent variables or use Liquid drops. The realm's automated emails do use Liquid, but messaging campaigns and templates do not.

Templates and email campaigns give you seven variables:

Variable	Replaced with
`%{name}`	The recipient's full name.
`%{first_name}`	The recipient's first name.
`%{last_name}`	The recipient's last name.
`%{email}`	The recipient's email address.
`%{show_link}`	A ready-to-paste HTML link, with the text "Email not displaying correctly? View it in your browser.", that opens the web version of the message.
`%{show_url}`	The address of that web version, unformatted, so you can build your own link.
`%{unsubscribe_link}`	The address the recipient uses to unsubscribe from the realm's deliveries.

Notification campaigns only have %{name}, %{first_name}, and %{last_name}.

Including %{unsubscribe_link} in the message footer is what lets the recipient unsubscribe, and those opt-outs are the ones that show up in Unsubscriptions.

Attention

If you write a variable that is not on the channel's list, the platform does not save the message and shows the error The attributes specified are not valid.

The template editor does not run that check: a template can be saved with an invalid variable, and the error only shows up when an email campaign uses it. If you pick it when creating the campaign, Save and continue does not create it and shows The campaign could not be created. with the detail in the form. If you load it later from the message editor with Change Template, the template is not applied and the notice is There was an error loading the template, try again in a few minutes, which does not mention the variable.

Incomplete data

If a recipient has no data for a variable, the result depends on where they read the message. In the email, the variable is replaced with empty text. In the email's web version, the one that %{show_link} and %{show_url} open, and in notifications, the variable is not replaced: if a user has no last name on file, for example, they see the text %{last_name}. Before using variables from optional fields, check that they are filled in for the segment you are targeting.

A campaign's Preview resolves these variables with your own administrator account data and with a sample unsubscribe link, so it is useful to review the design, not to check what data each recipient will see.

# Unsubscriptions

In this section, you will find a list of users who have unsubscribed from email campaigns or notifications through their web profile.

Use the search bar to find a specific user. You can enter their name or email.

Clicking on a user's name allows you to view their user profile with all their platform activities.

At the end of each username, there is a button that allows you to re-enroll the user to any campaign on the site.

Danger

Re-enrolling a user without their consent can lead to legal issues. Be sure to review the mass email regulations in your country.
